M12 Threaded Butt Type waterproof connectors is in common use for led street lighting,Livestock industry, poultry industry area. Its the CSA starndard connectors in China.Popular to all the lighting application, this thread butt connectors could support IP67 outdoor using, no matter for dimming lights, landscape lighting or floor lighting,even its is widely used in many others underwater tight request application.
M12 Threaded Butt Type Waterproof Circular Connector Details
Pin: 2Pin Male Femal Connector Current Rating(A): 8A Max
Material:PA6 Nylon Conenction Way: Threaded Butt Type
Operating Voltage: 100V Assembly Wire: Soldering or screw fitting
Out Door UV Resistance: Pass Cable Jacket OD: 4-8 mm²
M12 threaded butt type female connector plug datasheet
| Voltage Rating | 100V AC Max |
| Current Rating | 8A |
| Molding Cable Diameter | 4-8mm² |
| DC 2mA60S Insulation voltage | 3KV |
| DC500V Insulation resistance | 200MΩ |
| Operating Temperature | -40℃-105℃ |
| IP Class | IP67 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |

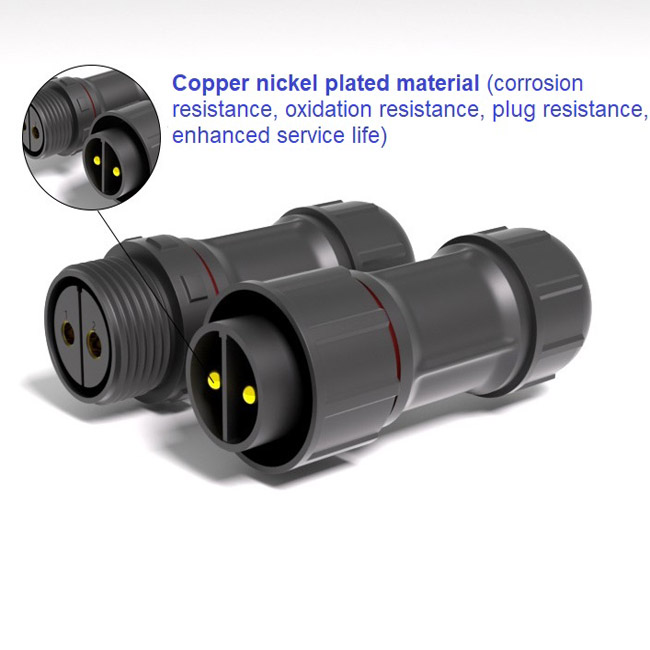

M12 threaded butt type female connector plug material details.

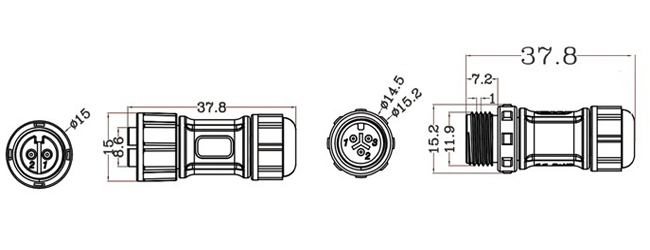

M12 threaded butt type female connector plug Drawing
FAQ
1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are our private mold, some of our connectors are customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...
2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email or Phone number,skype or whatsapp ID if possible, we have worked for this industry more than 8 years,we have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
4. Q: Can i get samples?
A: It's my honor for us to offer you samples,you just need pay freight cost.You can let me know your courier number and your detail address,Then I can send you sample at once.
Product Tags:
|
|
IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector Images
|
