IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock

Brand Name : Cablein

Certification : CE, ROHS, TUV , ETL

Place of Origin : Shenzhen China

MOQ : 100PCS

Price : The price ranges from $1 to $4 USD per pieces

Payment Terms : T/T,Western Union

Supply Ability : Sufficient supply capacity

Delivery Time : 5-8 Working Days

Packaging Details : High Quality export carton

Protection Level : IP68

Sealing Material : Silicone, Rubber

Configuration : Brass (gold plated)

Mechnical Life : 1000 times

Cable Guage : per your requirement

Housing Material : nylon, PVC

Lock Style : push pull self-lock

Mating Style : Screw

Contact Now

10A IP67 Panel Mount Power Connector, 5-Pin LP20 Series, Metal-Nylon Housing, Solder Type
Specifications
  • Pin: 5 Pin
  • Current Rating(A): 20A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Panel Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 2.5-4 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V
250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages:
  1. Material & Performance:

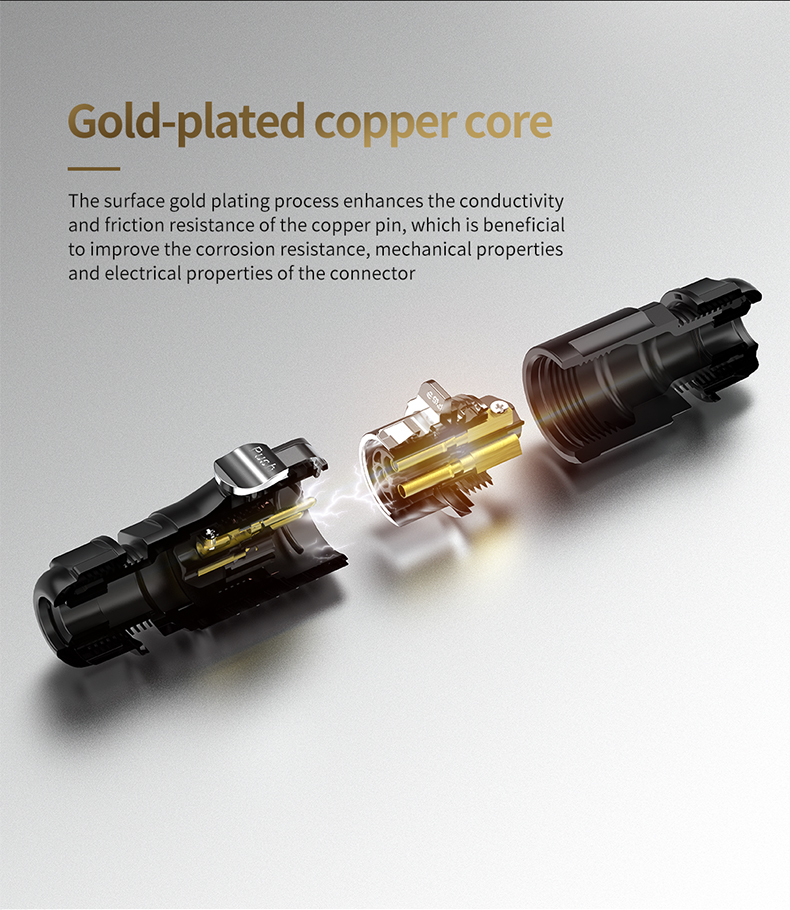

    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
