IP67 Panel Mount Power Connector, 20A 4-Pin LP20 Series, Metal-Nylon Housing, Solder Type
Specifications
- Pin: 4 Pin
- Current Rating(A): 20A Max
- Material: Metal+plastic
- Conenction Way: Push-button snap fastener
- Operating Voltage: 500V Max
- Assembly Wire: IP-Rated Locking Gland
- Mounting Type: Panel Mounting Type
- Out Door UV Resistance: Pass
- Cable Jacket OD: 2.5-4 mm²
Datasheet
| Pins Number | 2Pins | 3Pins | 4Pins | 5Pins | 7Pins | 9Pins | 12Pins |
| Rated Voltage | 500V | | 250V |
| Rated Current | 20A | 10A | 5A |
| Insulation voltage | 2.5KV | 1.5KV |
| IP CODE | IP68 |
| Cable Jacket OD | Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm |
| Assembly cable diameter | 2.4-4mm²/14-12AWG | 1-1.5mm²/18-16AWG | 0.34-0.75mm²/22-20AWG |
| Ambient temperature | -40℃~+80℃ |
Advantages
- Material & Performance:
The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments. - Secure Locking Mechanism:
Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal. - Waterproof Design:
Standard IP67 rating (IP68 optional) provides precise waterproof protection. - Certifications & Compliance:
Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

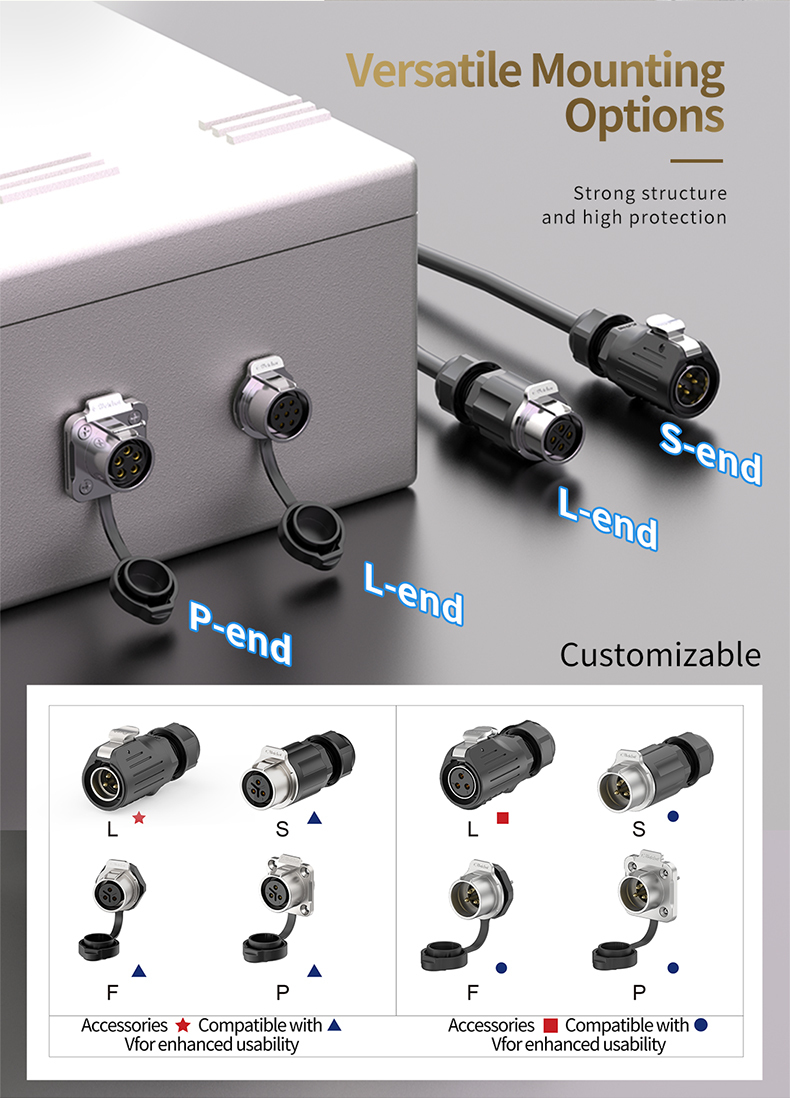

Product Images
Application Industries
Technical Drawings
IP67 Panel Mount Power Connector, 20A 4-Pin LP20 Series, Metal-Nylon Housing, Solder Type
Drawing
FAQ
Q: What is the primary application environment for this LP20 Series 20A connector? Is it suitable for outdoor use?
Absolutely. This connector is specifically engineered for harsh environments. Its IP67 rating guarantees complete protection against dust ingress and allows it to be submerged in water up to 1 meter deep for 30 minutes. This makes it an ideal solution for outdoor applications, industrial machinery, marine equipment, and any setting exposed to moisture, dust, or occasional washdowns. The combination of a metal shell and nylon base provides excellent resistance to corrosion, impact, and UV exposure.
Q: Why does the connector use a combination of Metal and Nylon in its housing? What are the benefits?
The hybrid Metal-Nylon Housing design offers the best of both materials:
* Metal Shell: Provides superior mechanical strength, durability, and shielding against electromagnetic interference (EMI), protecting the connection from external signals and vice versa.
* Nylon Base: Offers high impact resistance, excellent chemical and corrosion resistance, and electrical insulation. It is also lighter in weight and helps reduce overall costs without compromising performance.
This combination ensures a robust, reliable, and long-lasting connector that can withstand demanding conditions.
Q: The product is listed as "Solder Type." What is the advantage of this termination method, and are other termination options available?
A:The Solder Type termination provides a permanent, gas-tight, and highly reliable electrical connection. It is renowned for its superior mechanical strength and excellent current-carrying capability, making it ideal for high-vibration environments and applications where a secure, long-term connection is critical. While this specific model is a solder version, the LP20 series may offer other termination styles like screw terminals or crimp contacts. Please check our full product catalog or contact our sales team to inquire about alternative termination options for your specific needs.
